Usage

General

After installation PETdeface can be run from as follows:

petdeface /inputfolder --output_dir /outputfolder

Given a PET BIDS dataset like below:

tree /inputfolder
.
├── README
├── dataset_description.json
└── sub-PS50
    ├── anat
    │   ├── sub-PS50_T1w.json
    │   └── sub-PS50_T1w.nii
    ├── ses-baseline
    │   └── pet
    │       ├── sub-PS50_ses-baseline_pet.json
    │       └── sub-PS50_ses-baseline_pet.nii.gz
    └── ses-blocked
        └── pet
            ├── sub-PS50_ses-blocked_pet.json
            └── sub-PS50_ses-blocked_pet.nii.gz

6 directories, 8 files

The following output will be produced:

tree /outputfolder
/outputfolder
├── README
├── dataset_description.json
├── derivatives
│   └── petdeface
│       └── sub-PS50
│           ├── anat
│           │   ├── sub-PS50_T1w_defacemask.nii
│           │   ├── sub-PS50_desc-faceafter_T1w.png
│           │   └── sub-PS50_desc-facebefore_T1w.png
│           ├── ses-baseline
│           │   └── pet
│           │       └── sub-PS50_ses-baseline_desc-pet2anat_pet.lta
│           └── ses-blocked
│               └── pet
│                   └── sub-PS50_ses-blocked_desc-pet2anat_pet.lta
└── sub-PS50
    ├── anat
    │   ├── sub-PS50_T1w.json
    │   └── sub-PS50_T1w.nii
    ├── ses-baseline
    │   └── pet
    │       ├── sub-PS50_ses-baseline_pet.json
    │       └── sub-PS50_ses-baseline_pet.nii.gz
    └── ses-blocked
        └── pet
            ├── sub-PS50_ses-blocked_pet.json
            └── sub-PS50_ses-blocked_pet.nii.gz

14 directories, 13 files

Previously faced files are replaced with defaced images while the registration, mask files, and before and after photos are stored in the derivatives folder.

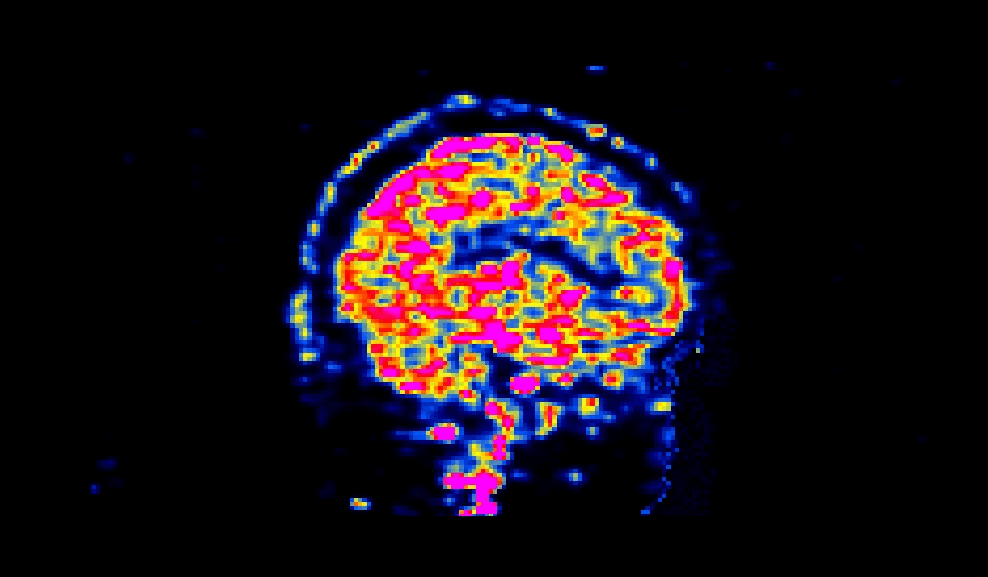

When viewed, a succesfully defaced PET image will have varying intensities in the face region, as shown below:

_images/sagittal.gif

The number of processors made available to PETdeface can be set by the –n_procs flag e.g.:

petdeface /inputfolder /outputfolder --n_procs 4

Additional options can be found in the help menu:

petdeface -h
usage: petdeface.py [-h] [--anat_only] [--participant_label PARTICIPANT_LABEL [PARTICIPANT_LABEL ...]] [--docker] [--singularity] [--n_procs N_PROCS]
                [--skip_bids_validator] [--version] [--placement PLACEMENT] [--remove_existing] [--preview_pics]
                [--participant_label_exclude participant_label_exclude [participant_label_exclude ...]] [--session_label SESSION [SESSION ...]]
                [--session_label_exclude session_label_exclude [session_label_exclude ...]]
                bids_dir [output_dir] [analysis_level]

PetDeface

positional arguments:

bids_dir The directory with the input dataset output_dir The directory where the output files should be stored, if not supplied will default to <bids_dir>/derivatives/petdeface analysis_level This BIDS app always operates at the participant level, if this argument is changed it will be ignored and run as a participant level

analysis

options:
-h, --help

show this help message and exit

--anat_only, -a

Only deface anatomical images

–participant_label PARTICIPANT_LABEL [PARTICIPANT_LABEL …], -pl PARTICIPANT_LABEL [PARTICIPANT_LABEL …]

The label(s) of the participant/subject to be processed. When specifying multiple subjects separate them with spaces.

--docker, -d

Run in docker container

--singularity, -si

Run in singularity container

--n_procs N_PROCS

Number of processors to use when running the workflow

–skip_bids_validator –version, -v show program’s version number and exit –placement PLACEMENT, -p PLACEMENT

Where to place the defaced images. Options are ‘adjacent’: next to the bids_dir (default) in a folder appended with _defaced’inplace’: defaces the dataset in place, e.g. replaces faced PET and T1w images w/ defaced at bids_dir’derivatives’: does all of the defacing within the derivatives folder in bids_dir.

--remove_existing, -r

Remove existing output files in output_dir.

--preview_pics

Create preview pictures of defacing, defaults to false for docker

–participant_label_exclude participant_label_exclude [participant_label_exclude …]

Exclude a subject(s) from the defacing workflow. e.g. –participant_label_exclude sub-01 sub-02

–session_label SESSION [SESSION …]

Select only a specific session(s) to include in the defacing workflow

–session_label_exclude session_label_exclude [session_label_exclude …]

Select a specific session(s) to exclude from the defacing workflow

Docker Based

PETdeface can be run in a docker container using the –docker flag:

petdeface /inputfolder --output_dir /outputfolder --docker

Alternatively, if one is unable to install PETdeface from source or PIP, but can execute running a docker image they can run this pipeline usin the syntax below:

docker run --user=$UID:$GID -a stderr -a stdout --rm \
-v /Data/faced_pet_data/:/input \
-v /Data/defaced_pet_data/:/output \
-v /home/user/freesurfer/license.txt:/opt/freesurfer/license.txt \
--platform linux/amd64 \
petdeface:latest  /input \
--output_dir /output \
--n_procs 16 \
--skip_bids_validator \
--placement adjacent \
--user=$UID:$GID \
system_platform=Linux

One needs to create 3 bind mounts to the docker container when running PETdeface directly from docker:

  1. /input needs to mounted to the input BIDS dataset on the host machine

  2. /output needs to be mounted to the output directory on the host machine

  3. /opt/freesurfer/license.txt needs to be mounted to the freesurfer license file on the host machine

If one is running PETdeface on a linux machine and desires non-root execution of the container, the --user flag needs to be set to the UID and GID of the user running the container.

Of course all of the above is done automatically when running PETdeface using the --docker flag.

Singularity Based

PETdeface can also be run using singularity, however one will need access to the internet/dockerhub as it relies on being able to retrieve the docker image from dockerhub. The syntax is as follows:

petdeface /inputfolder --output_dir /outputfolder --singularity

Running petdeface in singularity will generate then execute a singularity command that will pull the docker image from dockerhub and run the pipeline.

singularity exec -e –bind license.txt:/opt/freesurfer/license.txt docker://openneuropet/petdeface:latest petdeface /inputfolder –output_dir /outputfolder –n_procs 2 –placement adjacent

PETdeface will do it’s best to locate a valid FreeSurfer license file on the host machine and bind it to the container by checking FREESURFER_HOME and FREESURFER_LICENSE environment variables. If you receive an error message relating to the FreeSurfer license file, try setting and exporting the FREESURFER_LICENSE environment variable to the location of the FreeSurfer license file on the host machine.
